Conical Fermentation Tanks

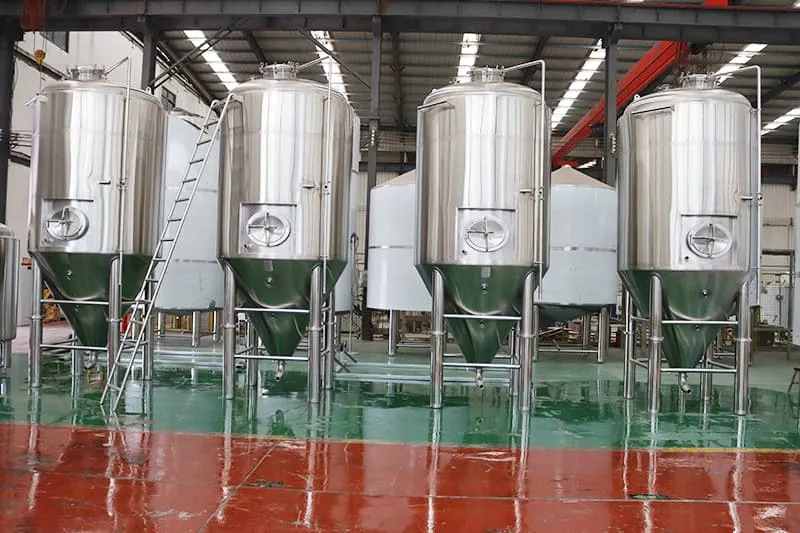

STAINLESS STEEL CONICAL FERMENTER
Conical fermenters are machines used for microbial fermentation. It is generally a cylindrical vessel made of stainless steel or copper plates. The volume of the fermenter is 1HL-300HL.
There is 20-30% of the upper fermentation space in the fermenter. The bottom of the conical fermenter is conical. It is not a flat bottom like a barrel or wine bottle. It can use to remove debris and yeast. Because this cleaning process is very hygienic, so yeast can reuse.
Stainless steel is the most ideal material for fermenters. This allows the brewer to carry out the primary and secondary fermentation in one vessel.
Video
Stainless Steel Conical Fermenters Advantages
- The fermentation tank is equipped with lifting ears, which is convenient for hoisting equipment in place.
- With rotating racking arm for beer delivery, which is convenient and flexible to deliver beer.
- All tanks are equipped with adjusting bolts to ensure the tanks are aligned and leveled.
- Strict quality control and process inspection & testing system, which all the testing record will show on our data late with the tanks shipping, with checking the list and serial numbers to track.
- Jacket testing 12 hours with air and water, jacket testing pressure is 5Bar, internal shell testing pressure is 4Bar, and 48hours of water testing before packing.
- Polished/Brushed/Mirror finish/Pickling passivation is optional
- Shadowless manway or top manhole according to the customer’s fermentation process and brewing types.
- Bigger headspace, the cover headspace volume is calculated separately and extra.
- Specially designed dimpled cooling jackets outside to ensure heating and cooling efficiency
- 60-degree cone angle for convenient for yeast excretion.
- Equipping with special ladder for easy operation
Conical Fermenters Standard Configuration
- Food-grade 304/316 stainless steel construction
- Double-wall with dimpled cooling jacket on shell and cone
- 25% oversized headspace for fermentation on top
- Full sanitary tri-clamped sampling valve
- Top pressure or side shadowless manhole
- PT100 temperature thermowell with sensor
- Rotation racking arm on the cone
- Dry hops adding port 4/6inch
- 360°coverage CIP spraying ball
- Threaded ice water inlet/outlet
- Pressure relief valve with pressure gauge
- Lifting bar on the top edge of the tank
- Heavy-duty legs with adjustable bolts
- Safety valve on top of the tank
- 60° yeast dumping outlet
Brewery Application Case
Frequently Questions
What after-sales services do you offer?
We offer comprehensive after-sales services, including equipment installation, commissioning, operator training, maintenance support, and spare parts supply. Our dedicated service team is always ready to provide technical support and solutions.
Does hgmc provide long-term maintenance services for equipment?
Yes, we provide long-term maintenance services for our equipment. We offer regular inspections, maintenance, and troubleshooting services to ensure your equipment is always operating at its best.
Do you offer international shipping?
Yes, we offer international shipping services. No matter where you are located, we can arrange efficient and secure shipping to deliver the equipment to your facility on time.
How do you ensure the quality of your equipment?
Our equipment undergoes strict quality control procedures, using high-quality materials that meet international standards. Multiple tests are conducted during production, and all equipment is thoroughly tested before leaving the factory to ensure performance and safety.
What is the estimated delivery time?
Delivery time generally depends on the type of equipment and customization requirements. Standard equipment typically takes 4-6 weeks for delivery, while custom equipment may take 8-12 weeks. We will provide a detailed delivery timeline based on your specific needs.
How can I get more information or a quote?
You can fill out the contact form on our official website or directly reach out to our sales team for more information or a quote. We will provide detailed technical specifications and a quotation based on your needs.
